Another Model

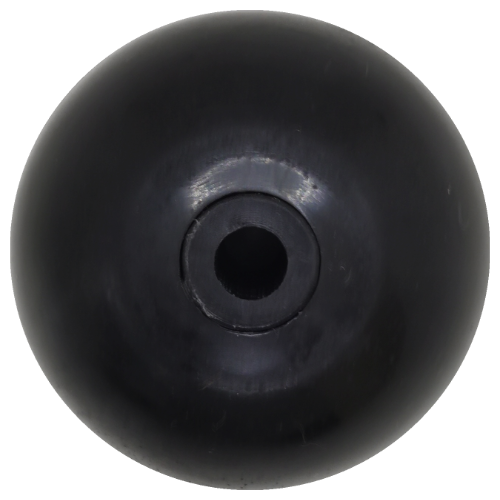

Wheel
K230CGVBP
Wheel Material : PVC
Wheel Center : PVC
Wheel Bearing : Nylon Bushing
Housing Type : Plate Swivel
Housing Bearing : Double Bearing Structure
Housing Coat : Chrome
Stopper : none
Specification
| Wheel Size (D) | 50 mm |
| Wheel Width (W) (mm) | 45 |
| Mounting Height (H) (mm) | 65 |
| Mounting Base (A x B) (mm) | 40 x 40 |
| Mounting Dimension (X x Y) (mm) | 29 x 29 |
| Plate Hole (P) (mm) | 6 |
| Turning Radius (R) (mm) | 48 |
| Load Capacity (kgs./wheel) | 30 |

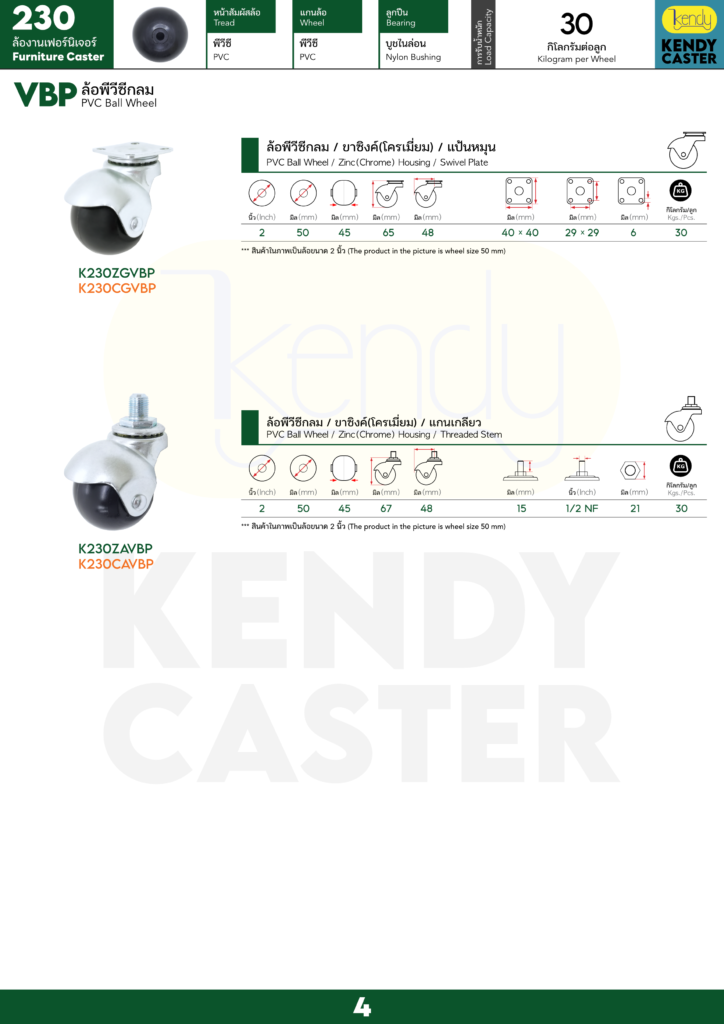

Catalog
PDF File Download
