Another Wheel

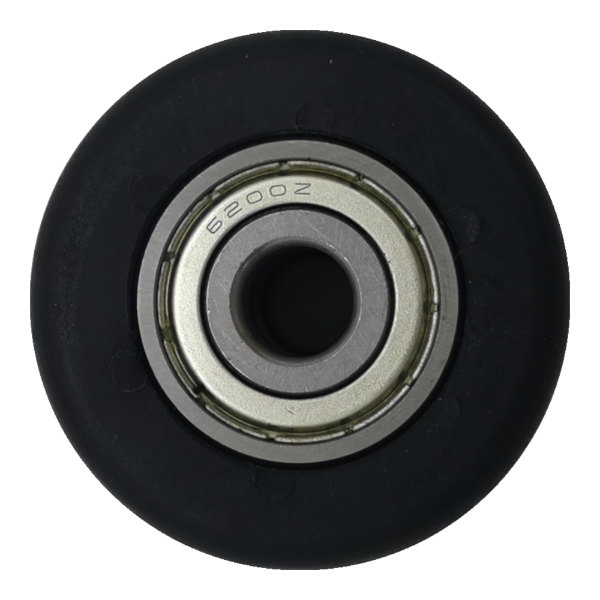

Wheel
A510ZGNWB
Wheel Material : Nylon
Wheel Center : Nylon
Wheel Bearing : Precision Ball Bearing
Housing Type : Plate Swivel
Housing Bearing : Double Bearing Structure
Housing Coat : Zinc
Stopper : none
Specification
| Wheel Size (D) | 50 mm |
| Wheel Width (W) (mm) | 40 |
| Mounting Height (H) (mm) | 72 |
| Mounting Base (A x B) (mm) | 92 x 65 |
| Mounting Dimension (X x Y) (mm) | 75 x 45 |
| Plate Hole (P) (mm) | 7.5 |
| Turning Radius (R) (mm) | 43 |
| Load Capacity (kgs./wheel) | 250 |

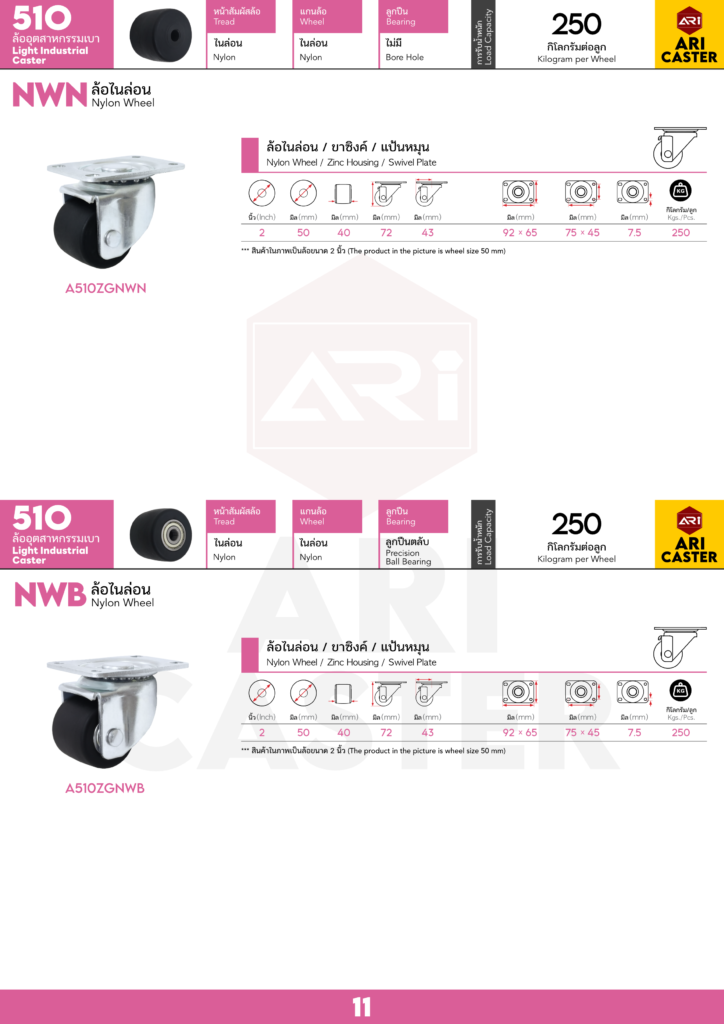

Catalog
PDF File Download
